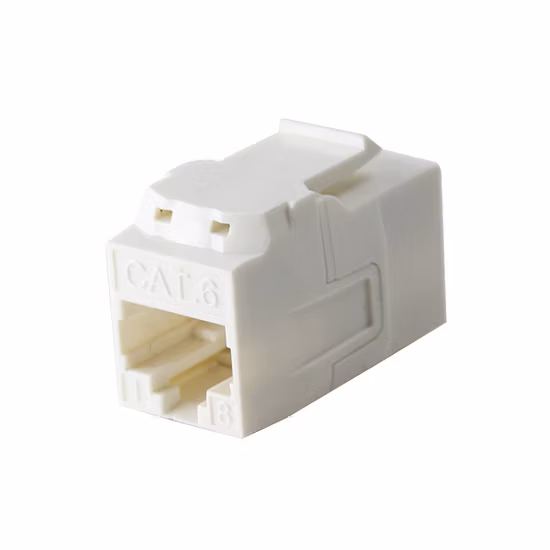

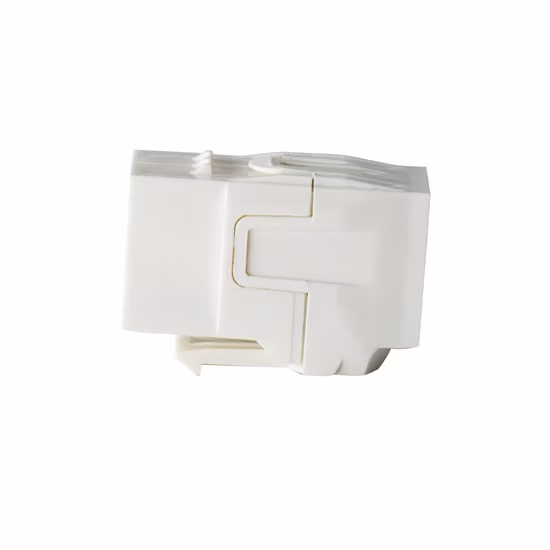

CAT6A UTP Toolless RJ45 Modular Plug Connection Module Coupler

Basic Info

Model NO.	kp001
Transport Package	Polybag
Trademark	CTC
Origin	China
HS Code	85366990
Production Capacity	10000000/Year

Product Description

CAT5E CAT6 CAT6A CAT8 Keystone JacksSpecifications

• Compatible with T568A and T568B wiring schemes.
• 110 IDC punch down type or Krone 45degree IDC type

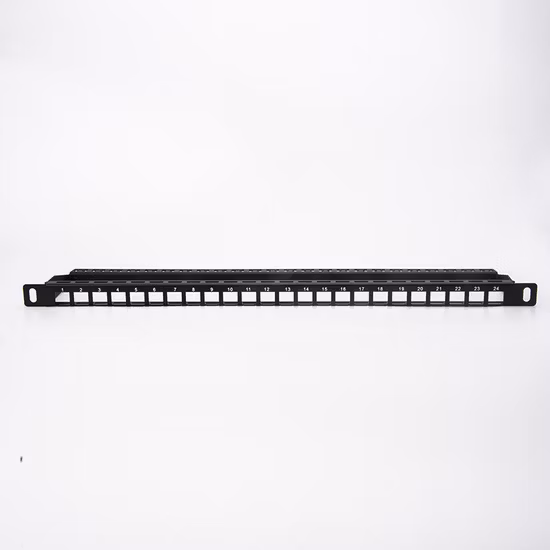

• Compatible with 24-port applications in 1U.
• Easily snap in and out of patch panel, and surface boxes or other application.
• UL Certified & RoHS Compliant.

Electrical Characterisitcs

• Insulation Resistance: 500 MΩ.
• Dielectric Withstanding Voltage: 1000 V AC.
• DC Current Rating: 1.5 Amps.
• DC Resistance: 0.1Ω.
• Contact Resistance: 20mΩ.

Mechanical Characterisitcs

• Suitable Impact Tool: 110 Style Punch Down Tool.
• Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.
• Contact Force: 100 Grams With FCC Compliant 8p Plug.
• Plug Retention Force: 11 LBF MIN.
• Durability: 200 Termination Cycles.
• Contact Compatibility: Accommodates 22 To 24 Awg Solid.
• Operating Temperature Range: -10°C To 60°C.
• Storage Temperature Range: -40°C To 68°C.
• Humidity: 10% ~ 90%RH.

CAT6 and CAT6A Comparison Chart

Category	Cat 6	Cat 6a
Data Transmission	1000 BASE-TX	10GBASE-T
Bandwidth Frequency	0~250 MHz	0~500 MHz
Maximum Distance	100 meters (328 feet)	100 meters (328 feet)
Distance for 1G	100 meters	100 meters
Distance for 10G	37~55 meters	100 meters
Common Gauges in Conductors	23 AWG	23 AWG
Cable Jacket	Thinner	Thicker
Connector Types	RJ45 connector	RJ45 connector
