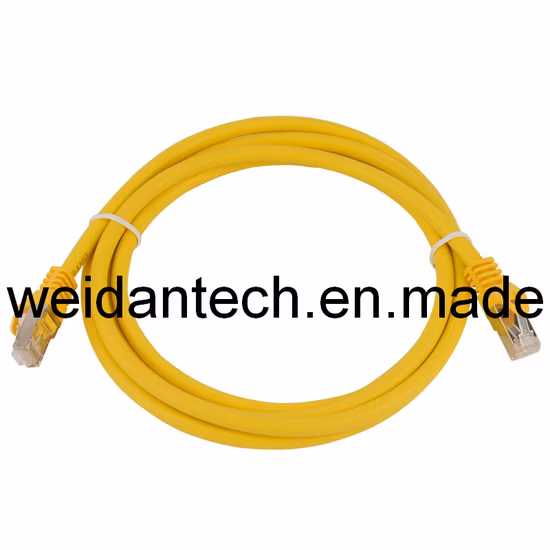

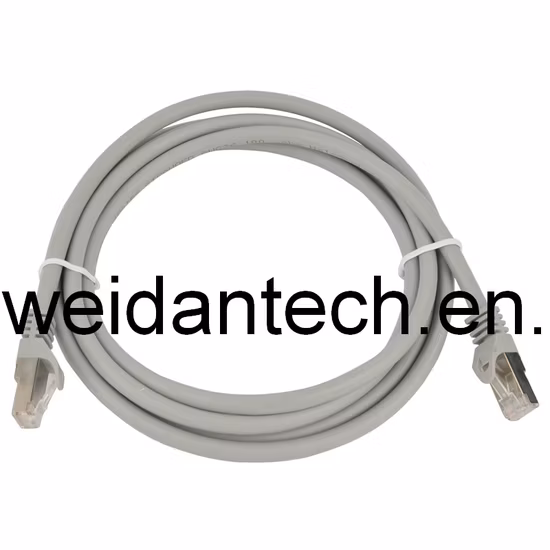

RJ45 Cat 7 SSTP F/FTP Patch Cord (WD1B-009)

Basic Info

Model NO.	WD1B-009
Application	Local Communication Cable, LAN Cable
Conductor Material	Copper
Cover Material	PVC or Lszh
Type	Cat 7
Certification	CE, RoHS, ETL
Color	All Color Available
Length	0.25meter----30meter
Transport Package	PP Bag, or Clamshell Package,
Specification	ROHS & REACH Complianted, Pass Fluk Test
Trademark	WEIDAN ELECTRONICS
Origin	China
HS Code	854442110
Production Capacity	200000PCS/Month

Product Description

Ultra High speed 10Gbit Cat6A/CAT7 F/FTP dual shielded Ethernet Network LAN cable patch cord
1. Cat7 F/ FTP Patch cord, with two modelded RJ45 Plug 15u' Gold plated,
2. Dual Shielded twisted Cable, 2*2*AWG26 Cable, OD=6.8MM, OFC Copper Stranded conductor,
PIMF Al foiled of each twist pair,
3. Special designed CAT7 RJ45 Modular, ensure lowest Insert loss, .
3, Compliant with EIA/TIA 568B, EN50173, AND ISO/IEC 11801,
4. Connect way: 1: 1 or Crossover for option,
5. Excellent Fluke test data, low Attenuation and high NEXT, RL etc, Pass Fluke Patch cord test
6. Suitable for 600MHz High speed Data transmission, Gigabit Ethernet, TP-PMD,
7. UL or cUL Listed, compliant with CMX, CM, CMR
8. PoE+ acc to IEEE 802.3at: Suitable for Power over Ethernet+.
<LEFT>10 Gigabit Ethernet acc. To IEEE 802.3an: Suitable for 10 Gigabit Ethernet.

Approval

Delta, ETL, CE, UL
